YD-LY5001-DS

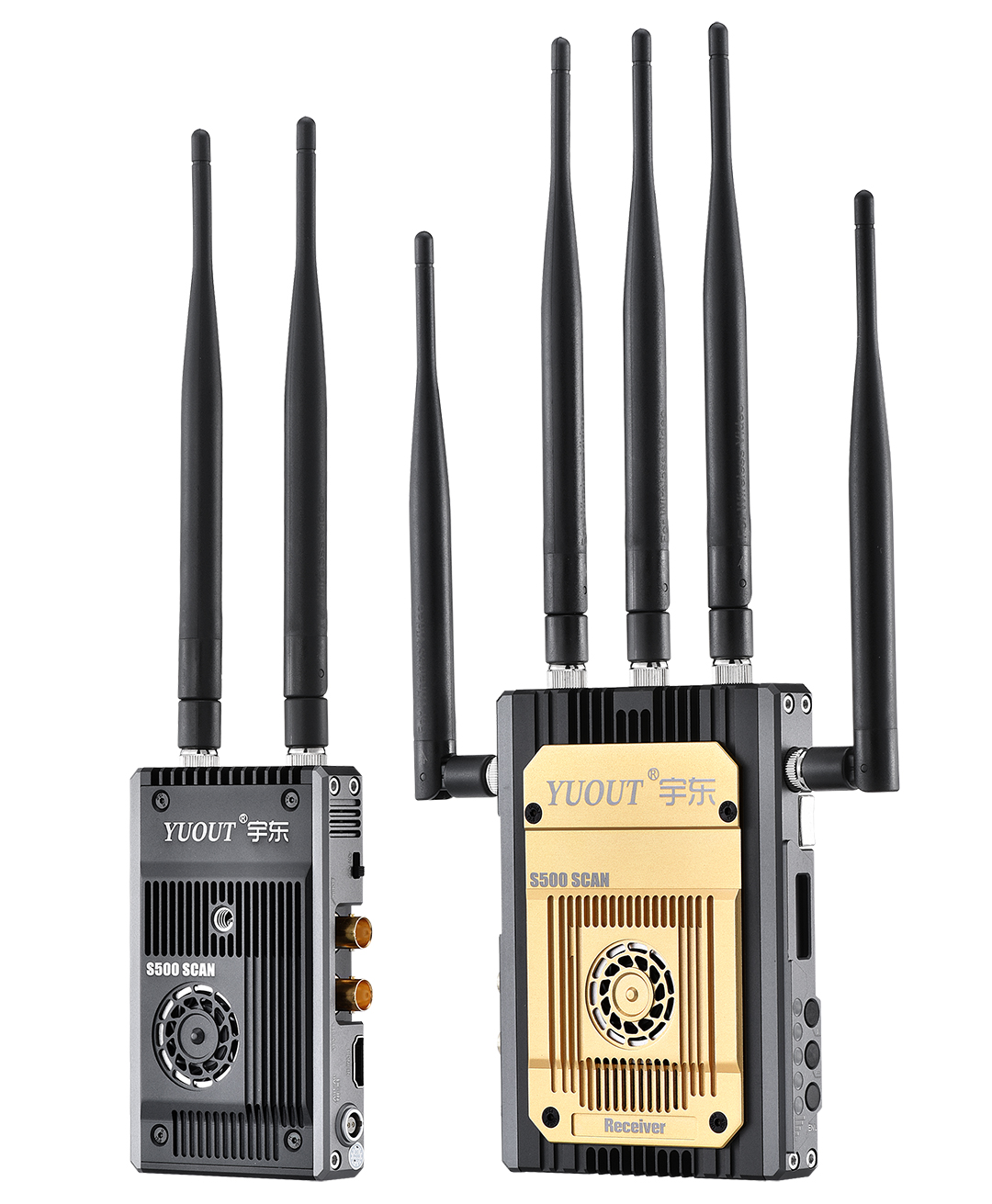

The transmitter has two SDI ports and one HDMI port, one of which is looped out locally and can be connected to an SDI monitor. The receiver is equipped with a V-port gusset, which can use a V-port battery and has a visual range of 500 meters +. It is mainly used in broadcasting, broadcasting live: broadcasting field, sports broadcasting, social news, air live, studio, mountaineering expedition and so on.
| 發射器 | 接收器 | |
| 接口 |
SDI 輸入（BNC 母頭）; HDMI 輸入 (Type A 母頭); 2 天線接口 (PR-SMA 公頭); DC 輸入 (2針 LEMO 母頭) |
SDI 輸出（BNC 母頭）; HDMI 輸出 (Type A 母頭); DC 輸入 (2 針 LEMO 母頭) |
| 供電電壓范圍 | 7-18V DC | 7-18V DC |
| 功耗 | <7W | < 9.5W |
| 成品尺寸 |
(長x寬x高): 72×120×20mm 不包含外接天線 |
(長x寬x高): 142×100×22mm 不包含外接天線 |
| 輸入視頻格式 |
HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.98/24/25/29.9/30/50/59.94/60; HDMI Type A; SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425; 1 x BNC |
/ |
| 輸出視頻格式 | / |
HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425; 1x BNC |
| 頻帶 | 4.9-5.9GHz，可調整為中國、北美、歐洲的相應頻帶 | 4.9-5.9GHz，可調整為中國、北美、歐洲的相應頻帶 |
| 傳輸距離/延時 | 空曠距離最遠可達約500米 | 無壓縮零延時 |
| 發射功率 | Maximum 17dBm | / |
| 接收靈敏度 | / | -75dBm |
| 帶寬 | 40MHz | 40MHz |
| 溫度范圍 | 0 ~ 40°C (工作情況); -20~60°C(儲存情況) | 0 ~ 40°C (工作情況); -20~60°C(儲存情況) |
| 屏幕 | 0.96 inch OLED | 0.96 inch OLED |
